12V Kids Electric Ride-On Car with 2.4G Bluetooth Remote Control and Receiver

Ensure a Perfect Fit for Your Electric Ride-On Car!

Transform your child's ride-on car experience with a seamless replacement control box! Whether you're upgrading or replacing, ensuring compatibility is key to keeping the fun rolling. Follow these simple steps to guarantee a perfect fit and enjoy peace of mind knowing your little one is safe and sound on their adventures.

1. Visually Compare the Control Box

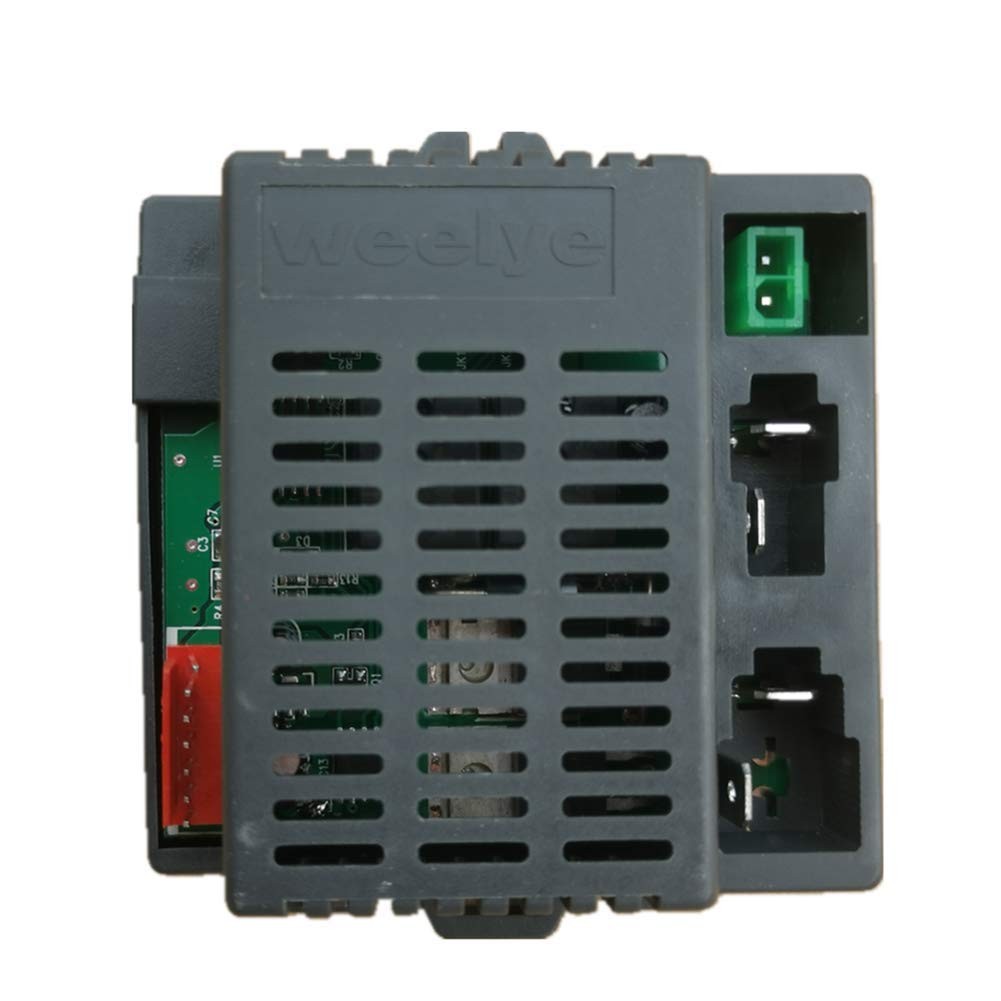

Start by opening the body of your ride-on car to access the original control box. For safety, make sure to power off and disconnect the battery first. Place the old and new control boxes side by side. If their shape, mounting hole locations, and connector arrangements match exactly, you’re in luck! The new unit should fit into your car’s chassis without any modifications.

2. Check the Connector Type

Next, count the pins on the main wiring harness plug. Most 12 V ride-on cars utilize a 7-pin unilateral socket. Ensure that the plug on your new control box has the same number of pins and the same socket orientation. If they look identical, you can plug in the wiring harness directly, making installation a breeze!

3. Verify Model Number and Voltage

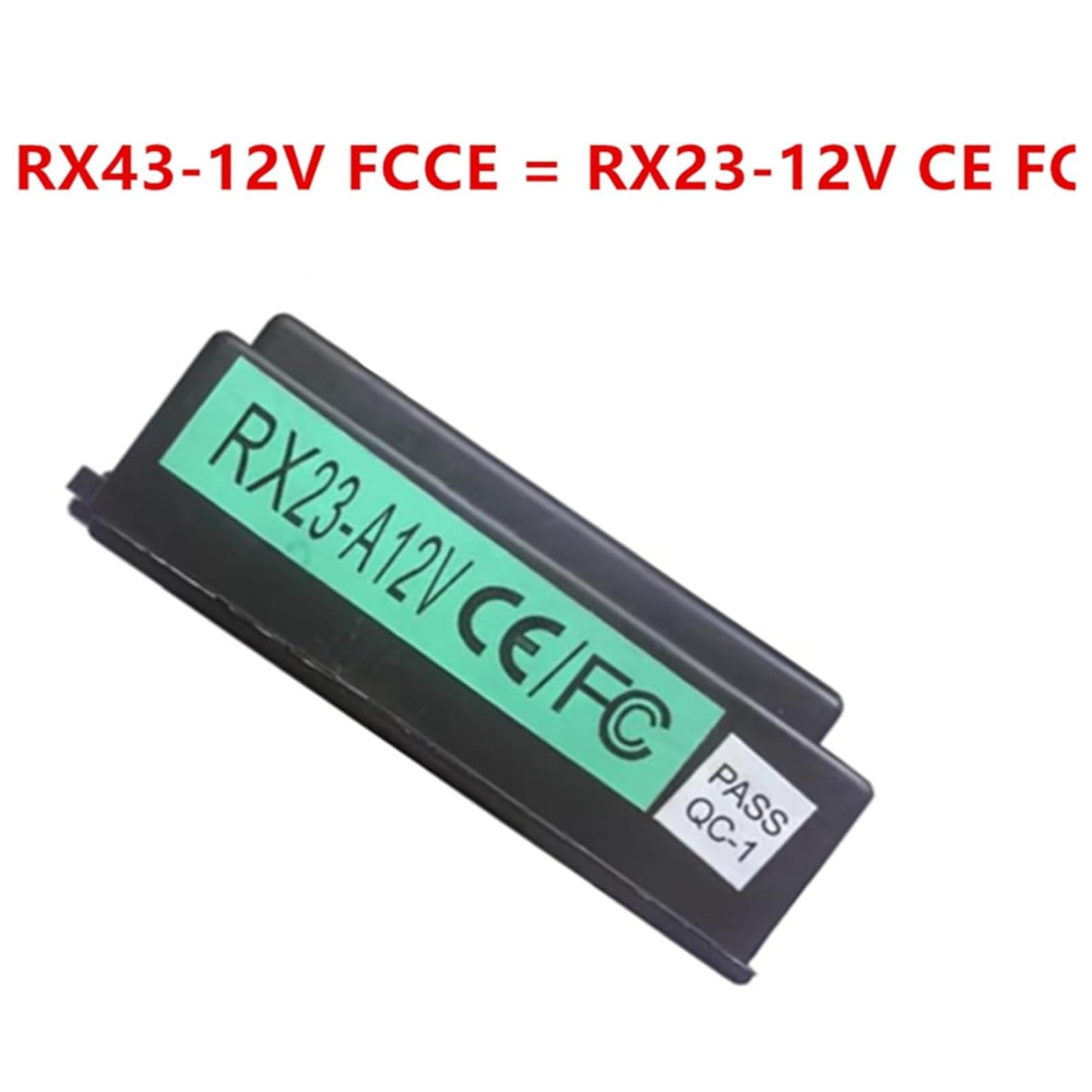

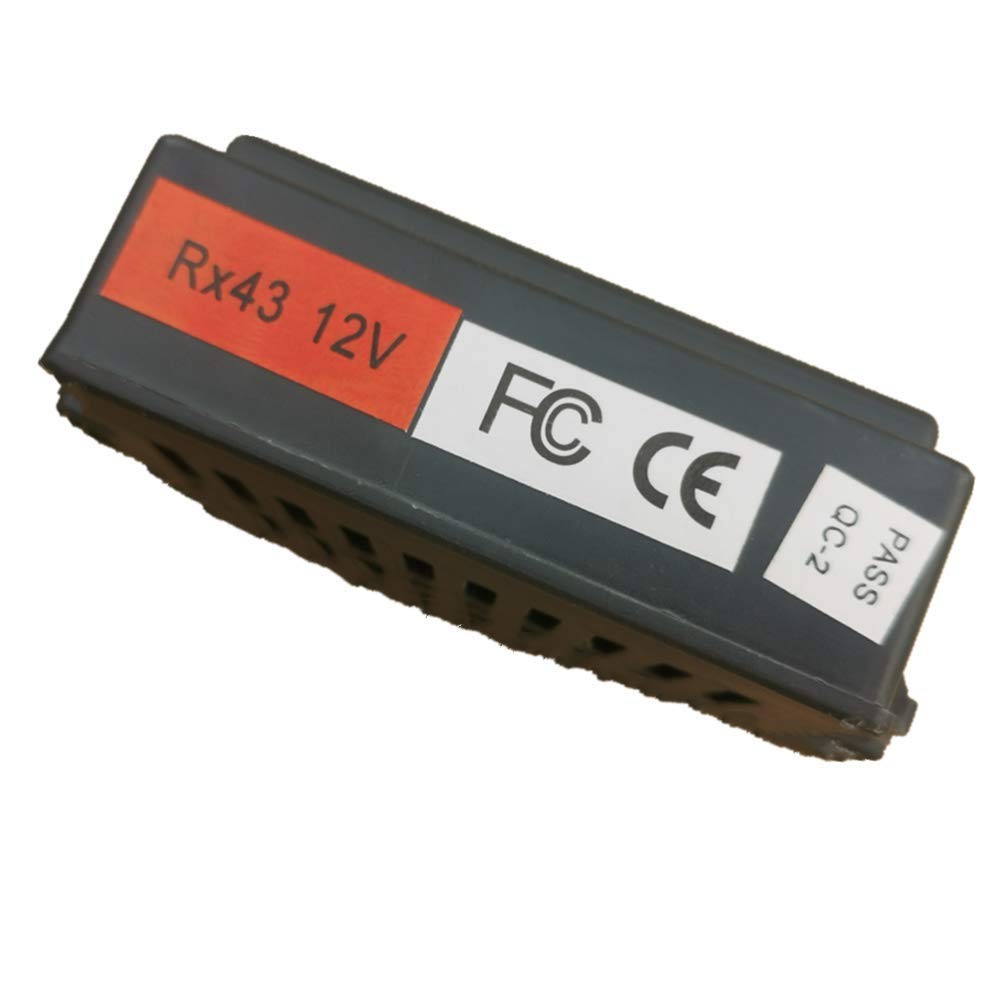

Locate the model number printed on your original control box, which typically includes markings like “RX23-12V” or “RX43-12V CE FC.” Confirm that your replacement part bears the same model code and is rated for 12 V operation. A mismatched voltage can prevent your car from running or even damage its electrical system, so double-check this step!

4. Perform a Frequency-Match Procedure

If your control box uses a wireless remote (2.4 GHz or Bluetooth), syncing it to your car is essential before first use or after replacing batteries. Start by installing two AAA 1.5 V batteries into the remote, ensuring correct polarity. Close the cover and watch for the indicator LED to flash three times, confirming power. Press and hold the frequency-match button (often labeled “car select”) for about 2 seconds until the LED flashes continuously. Switch on the ride-on car’s power, and when the LED on the controller turns off, frequency matching is successful!

5. Test All Functions

Before fully reassembling the car, temporarily reconnect the battery and turn on the power. Test forward and reverse motion, steering response, horn/beep functions, and any built-in music or lights. If everything operates smoothly, you can confidently close up the body panels and secure all fasteners.

6. Troubleshooting Tips

If the car powers on but won’t respond to the remote, revisit the frequency-matching procedure or replace the AAA batteries in the remote. If the motor doesn’t run, check fuse holders and wiring for loose connections or corrosion. Ensure the ride-on car’s main battery is fully charged and capable of delivering sufficient current to the control box and motors.

Key Features at a Glance:

• Visual Comparison: Ensure shape and connector arrangements match for a seamless fit.
• Connector Verification: Confirm pin count and orientation for easy installation.
• Model Number Check: Match model codes to avoid voltage issues.
• Frequency Matching: Sync your remote for smooth operation.
• Function Testing: Ensure all features work before final assembly.

By following these steps—visual comparison, connector verification, model/voltage check, frequency matching, and function testing—you can confidently ensure your new control box fits and works perfectly in your ride-on car. Enjoy the ride!
