Chevrolet Trailblazer SS 2006 - 2009 Dual Fuel Pump Module

HINSON Motorsports Dual Fuel Pump Module for 2006-2009 Chevrolet Trailblazer SS

The HINSON Motorsports Dual Fuel Pump Module is designed to meet the extreme fuel demands of high-horsepower Trailblazer SS builds while maintaining the convenience of the factory fuel tank. Whether you're running a street or race setup, this system ensures consistent fuel delivery with gasoline or E85 compatibility. The module installs directly into the OEM fuel tank and is secured using the factory locking ring, allowing for a hassle-free upgrade without modifications.

Key Features:

✅ Factory Fuel Tank Compatibility – Installs seamlessly into the OEM fuel tank for a direct fit
✅ OEM Locking Ring Retention – Securely mounts using the original factory locking ring
✅ Twin Fuel Pump Options – Choose between 525lph, 450lph or 255lph E85-compatible fuel pumps

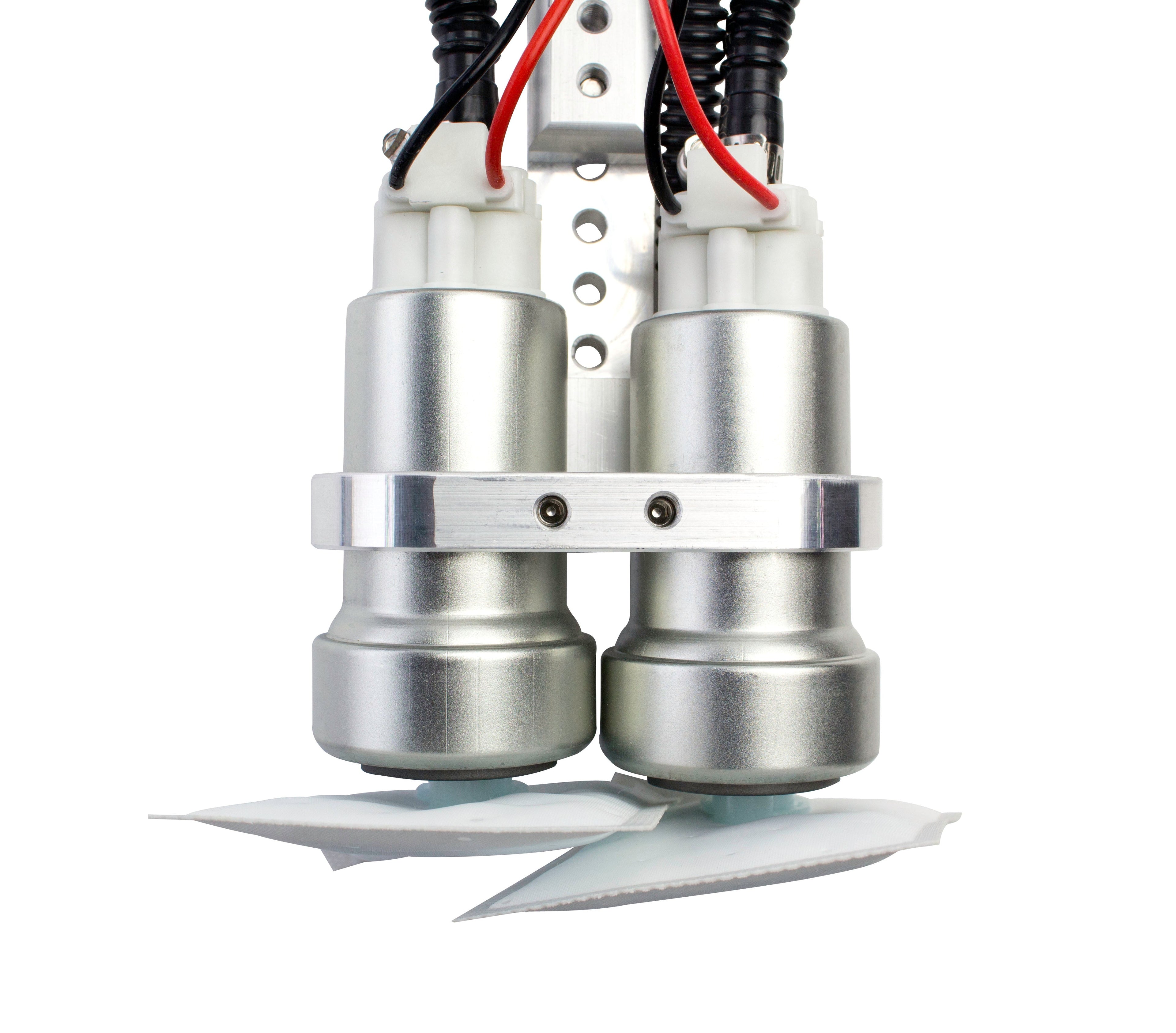

✅ Adjustable Height Pump Mounts – Ensures optimal fitment and fuel pickup
✅ OEM Fuel Level Sender Mount – Maintains factory fuel level gauge functionality
✅ High-Flow Connections – 8AN outlet, 8AN return, and 6AN vent for unrestricted fuel delivery
✅ Made in the USA – Precision-engineered for performance and reliability

Vehicle Fitment:

✔ 2006-2009 Chevrolet Trailblazer SS (TBSS & All Trailblazer trim levels)

Choosing the Right Fuel Pump:

🔹 Dual 255lph Pumps – Supports 800-1,000 HP, depending on fuel type and induction method

🔹 Dual 450lph Pumps – Supports 1,000-1,400 HP, depending on fuel type and induction method
🔹 Dual 525lph Pumps – Supports 1,350-1,600 HP, depending on fuel type and induction method

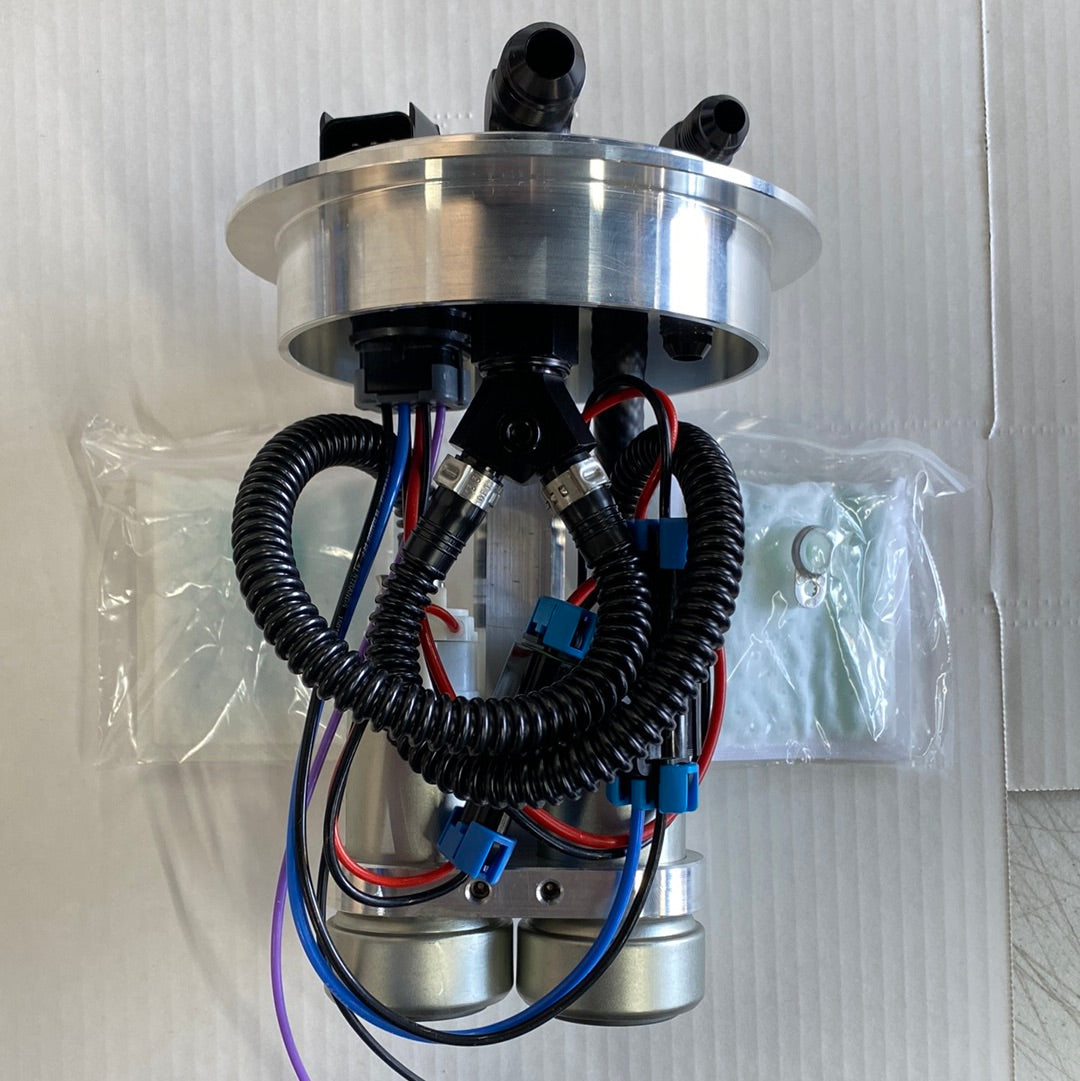

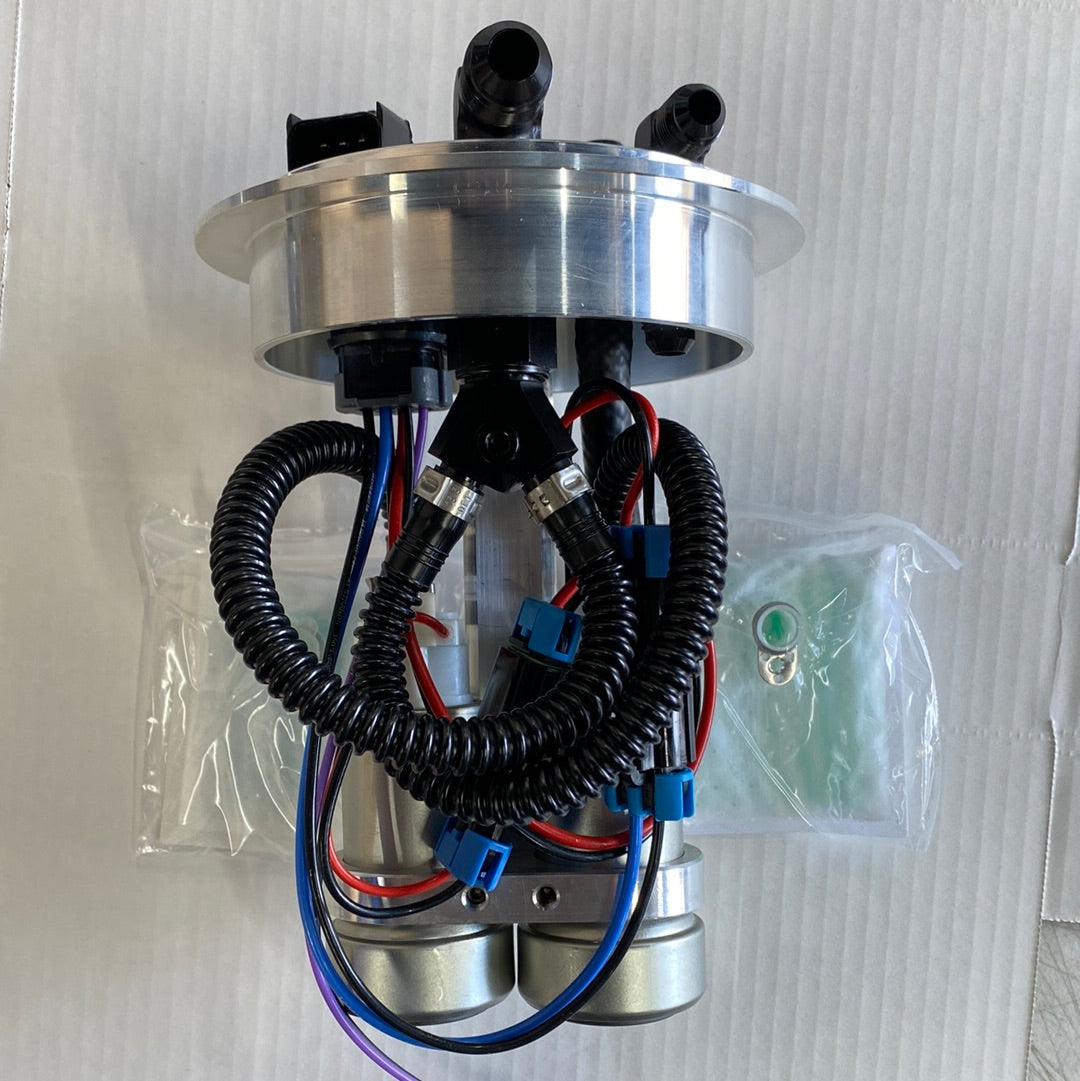

📌 Note: Product images show the 450lph pump configuration.

⏳ Average Lead Time: 5 business days
